Thermo-electronic (semi-conductor) Cooling
1. Cook and Cold type is available
2. Adopt the material met food safety requirement, hygienic and safe;
3. Hot tank is made of high quality SS304 stainless steel
4. Regular hot tank size 1.2 liter, cold tank size 0.8 liter(hot and cold tank size can be made as per customer’s special request)
5. Inside heater or outside heater or re-heating function is optional
6. Double semi-conductors cooling system is optional, the cold tank size is 1.4 liter

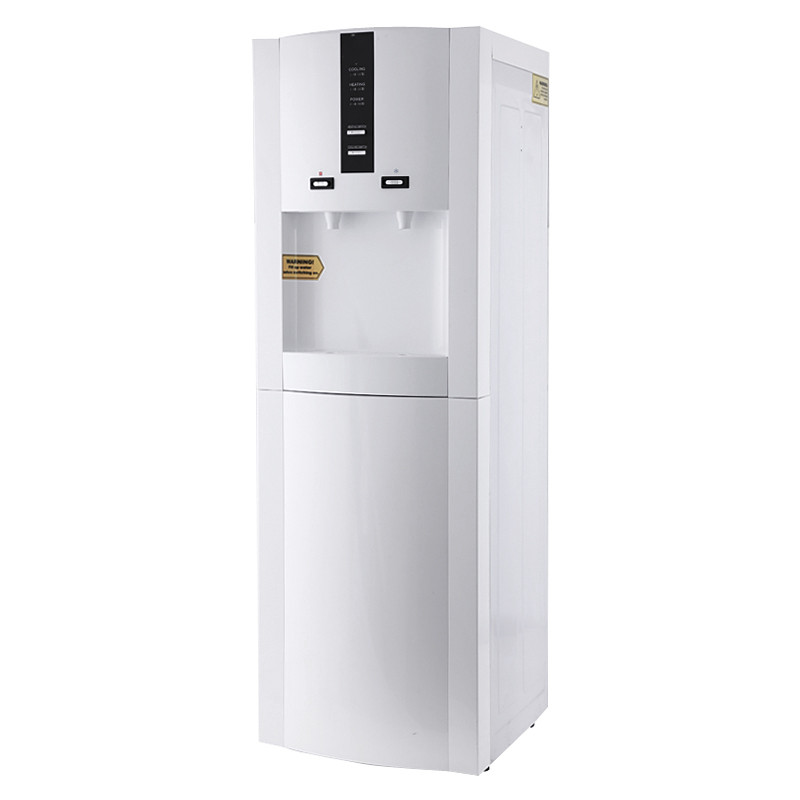

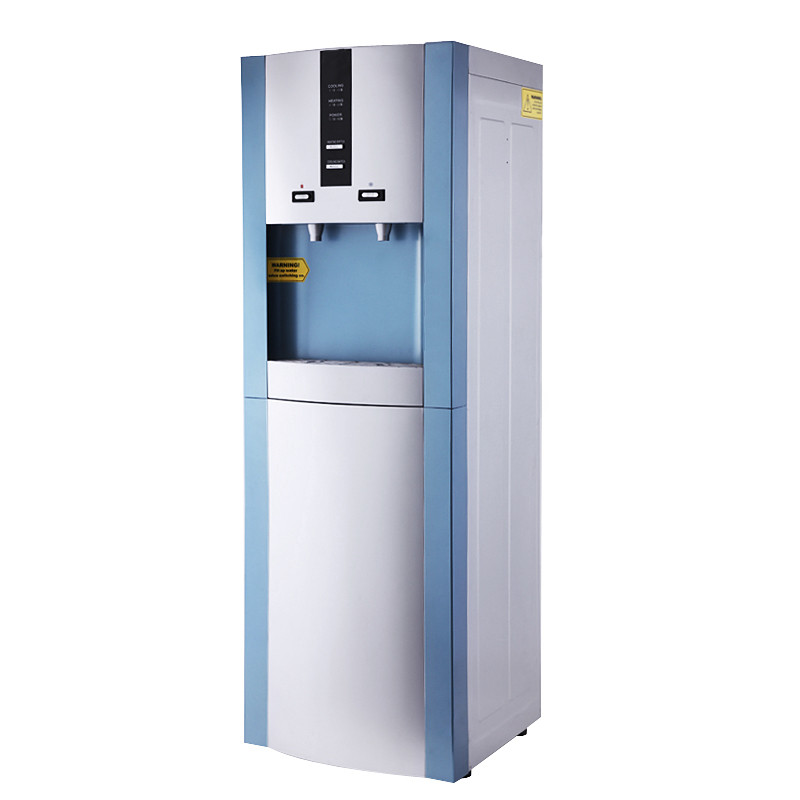

Technical Parameters of Hot and Cold Water Dispenser

Model	YLR0.7-5-X(16LD/D)	YLR0.7-5-X(16LD-C/D)	YLR0.7-5-X(16LD-G/D)	YLR0.7-5-X(16LD-CG/D)
AC Voltage	220V/50HZ or 110V/60HZ	220V/50HZ or 110V/60HZ	220V/50HZ or 110V/60HZ	220V/50HZ or 110V/60HZ
Cooling Power(W)	68	68	68	68
Heating Power(W)	500	500	500	500
Cooling Capacity(L/H)	≤15℃ 0.75L/H	≤15℃ 0.75L/H	≤15℃ 0.75L/H	≤15℃ 0.75L/H
Heating Capacity(L/H)	≥90℃ 5L/H	≥90℃ 5L/H	≥90℃ 5L/H	≥90℃ 5L/H
Energy Consumption	1.65kW.h/24h	1.65kW.h/24h	1.65kW.h/24h	1.65kW.h/24h
Working Ambient	10—38℃	10—38℃	10—38℃	10—38℃
Electric Shock Protection Type	I	I	I	I
N.W.(KGS)	8	9	9	9
G.W.(KGS)	9	10	10	10
Unit Meas.(MM)	310×310×960	310×310×960	310×310×960	310×310×960
Simple Packing Meas.(MM)	330×335×1000	330×335×1000	330×335×1000	330×335×1000
