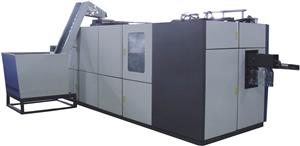

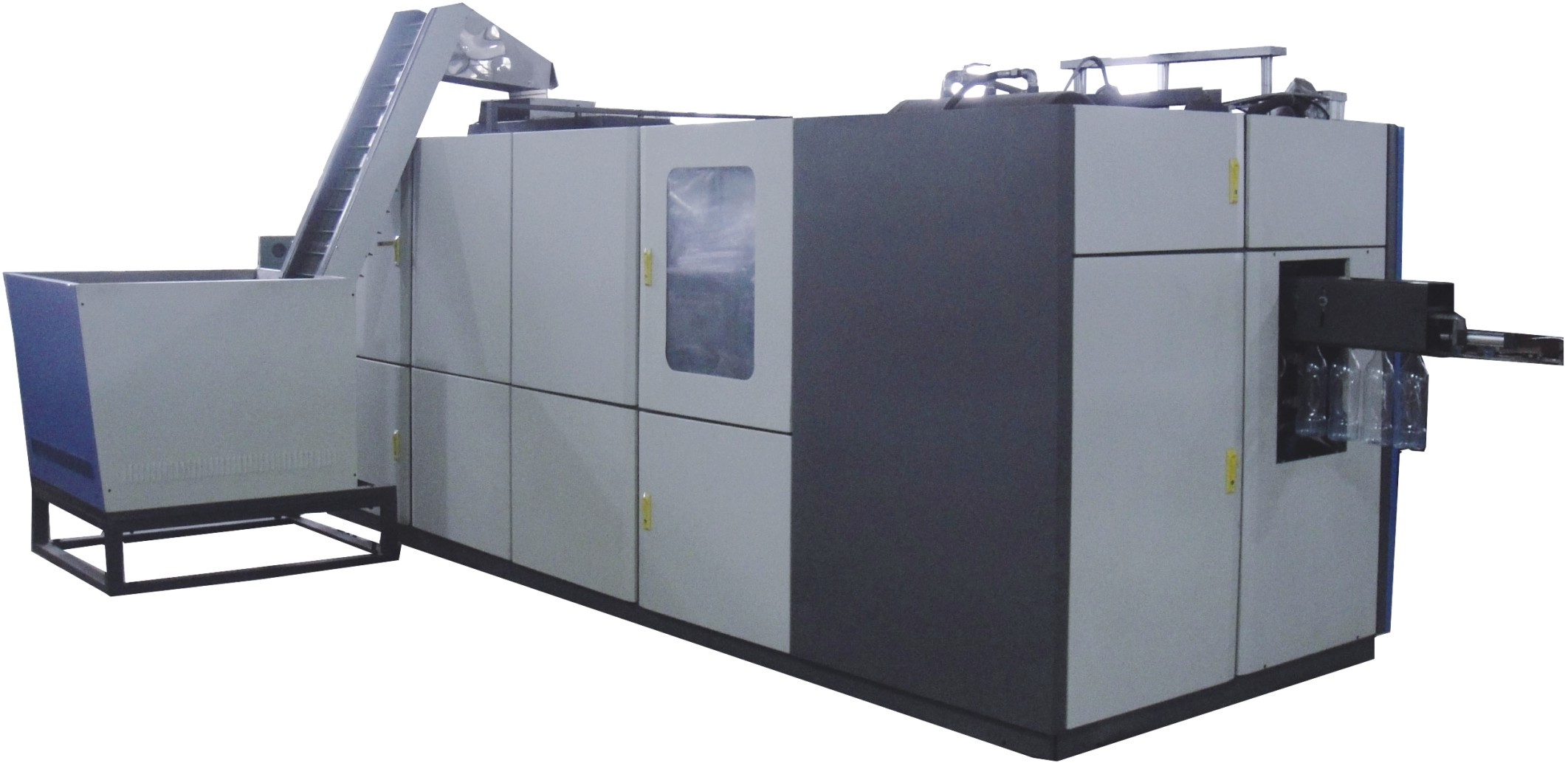

Application
JND series auto bottle blow moulding machines are extensively used for manufacturing PET plastic containers and packages for mineral water, beverage, oil, cosmetic and hot infusion, etc.

Features of Auto Bottle Blow Molding Machine
1. Labor saving: only one operator is needed for its high automation: the automatic bottle making machine is controlled by micro-computers and each production process is equipped with self-locking functions which ensured safety production.
2. Energy saving and cost saving: JND automatic bottle making machine adopted a high pressure clamping system with automatic pressure adjustment function. This system can help guarantying that the mold sealing is under condition of 100% air tightness before blowing and help avoiding air energy loss owing to incomplete air tightness. Such an effective control over air energy and power further helps saving production cost.

Technical Standards of Auto Bottle Blow Moulding Machine

General Information	JND-E1500	JND-E2500	JND-E3500	JND-E4000	JND-E5500
Clamping Force	14T	25T	31T	34T	63T
Clamping Stroke	150mm
Max. Stretching Stroke	370mm				380mm
Bottom Moving Stroke	70mm --
Number of Cavities	2 Cavity	2 Cavity	3 Cavity	4 Cavity	6 Cavity
Theoretical Output	1500BPH	2500BPH	3500BPH	4000BPH	5500BPH

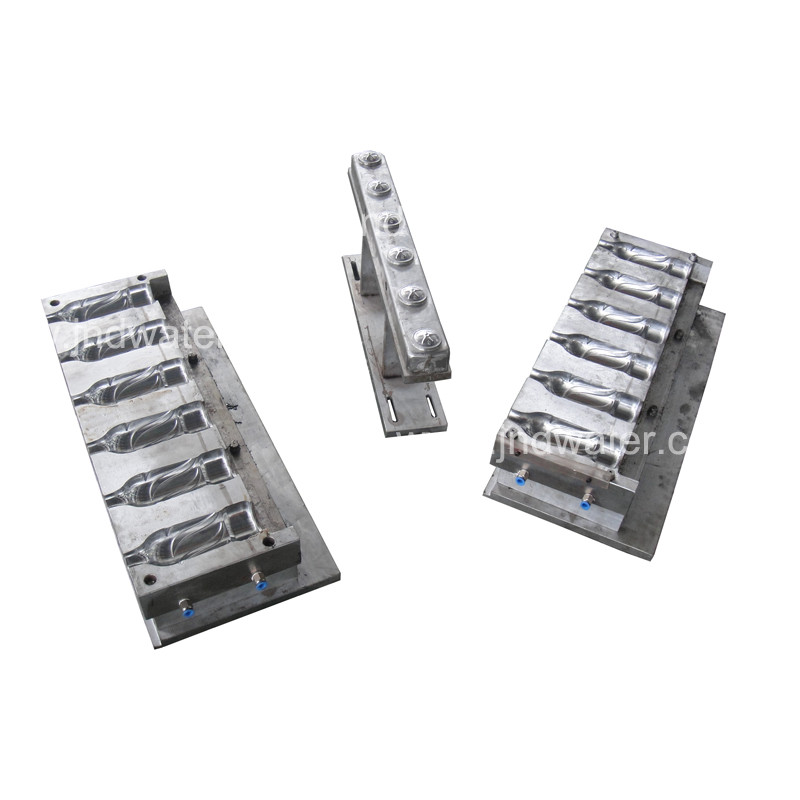

Max. Mould Thickness	300mm
Space Between Tie Bars	300×380mm	400×380mm	500×380mm	640×380mm	800×400mm
Electrical System
Voltage Standard	AC 380V/50HZ
Number of Heating Zone	2 Sections	2 Sections	3 Sections	4 Sections	6 Sections
Total Power(Full Loaded)	20kW	28kW	28kW	60kW	86kW
Container of Auto Bottle Blow Moulding Machine
Max. Container Volume	2.5L
Neck Diameter Range	32mm				15-40mm
Max. Container Diameter	35-100mm
Max. Container	400mm
Auxiliary System of Automatic Bottle Making Machine

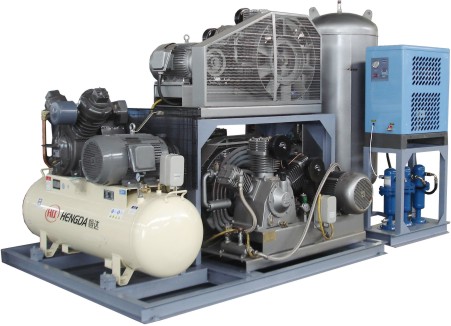

Low Air compressor	8-10Bar
High Air compressor	30Bar
Air Dryer	2.0/30
Dimension & Weight (L×W×H)
Blow molding machine	1800×1600×2000	2000×1800×2200	2150×2300×2200	2150×2500×2300	2200×4000×1900

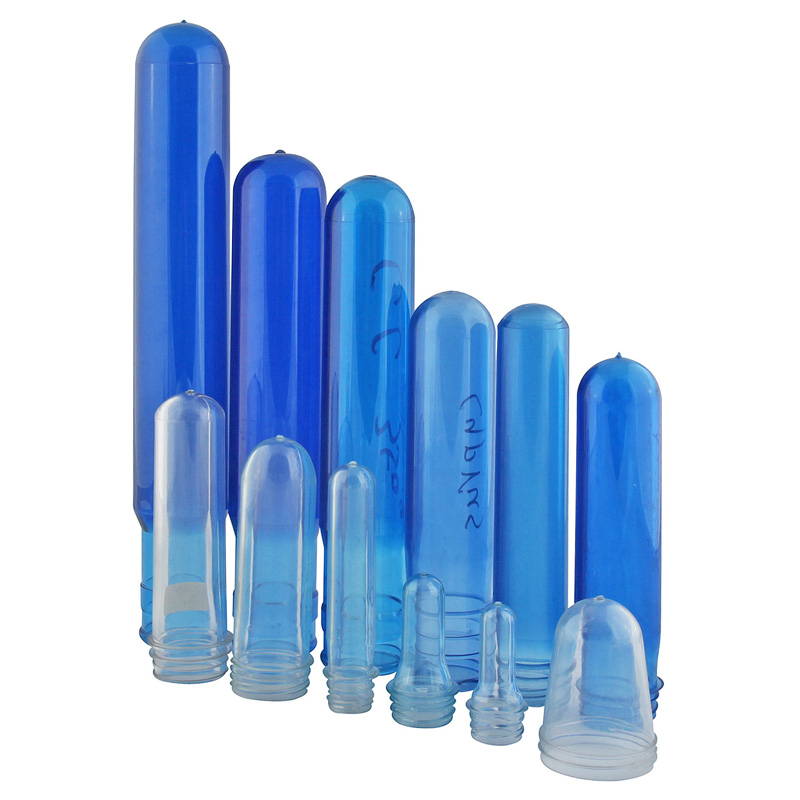

Preform Auto loader	1400×1050×2000	1500×1200×2500			220×150×250
Net Weight	2.6Ton	308Ton	4.5Ton	6Ton	7Ton
