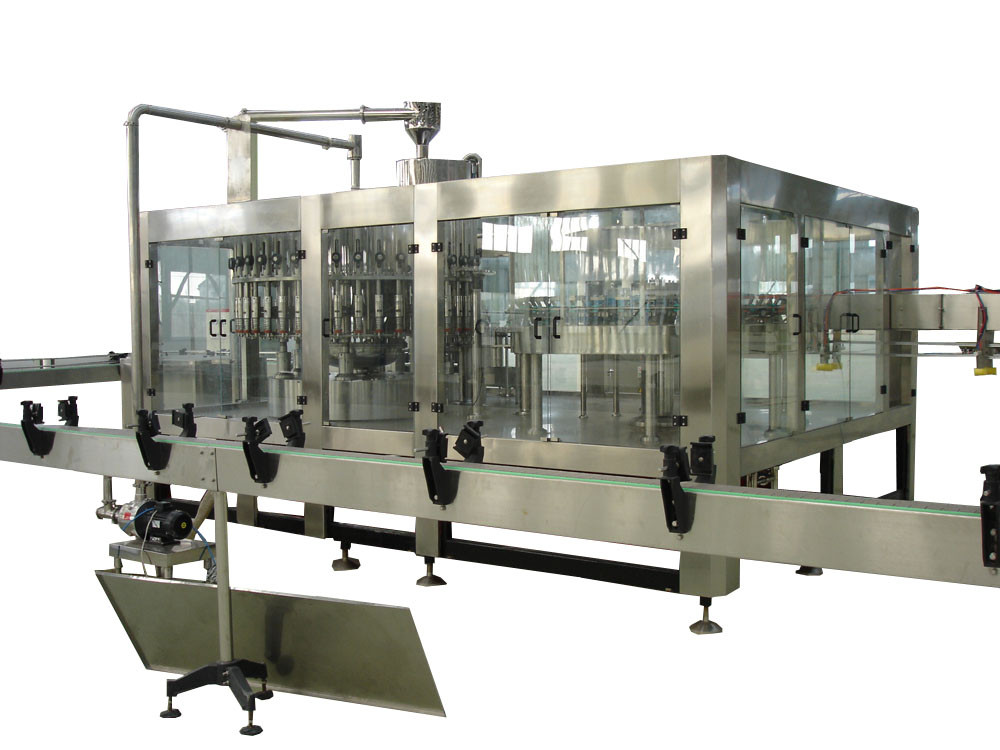

The advanced micro negative-pressure filing technology used in this hot drink filling machine makes the filling quickly, steady and accurate.
Applications
1. Integrated the functions of bottler washer, bottle filler and bottle capper.
2. The bottle filling equipment is mainly used for bottle packing of fruit juice, tea drink, etc.
3. Bottled purified water filling and minerals water filling are also applicable.
Features of Hot Drink Filling Machine
1. Bottle-neck clamping device and bottle suspending design enable a stable filling under high-speed moving conditions;
The need for filling different types of bottles can be realized easily by changing a few parts.

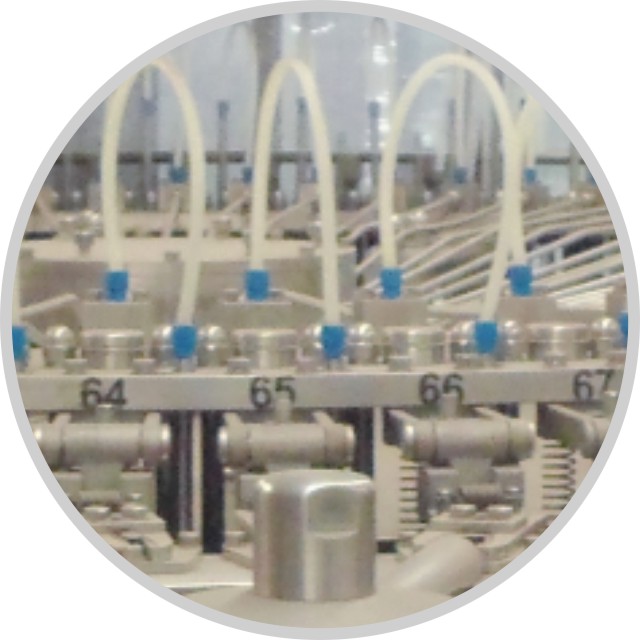

2. Stainless cap clips will not contact the area above the bottle's screw thread. And the equipped nozzles in clips wash the interior of the bottle thoroughly.
3. The advanced micro negative-pressure filing technology used in this hot drink filling machine makes the filling quickly, steady and accurate.
4. Fully enclosed beverage-holding tank; and temperature-control device and CIP washing interface are equipped.
5. The machine can meet all the technical requirements for hot-filling below 95¡æ.
6. RO washing device is adopted to wash bottle mouth before capping.

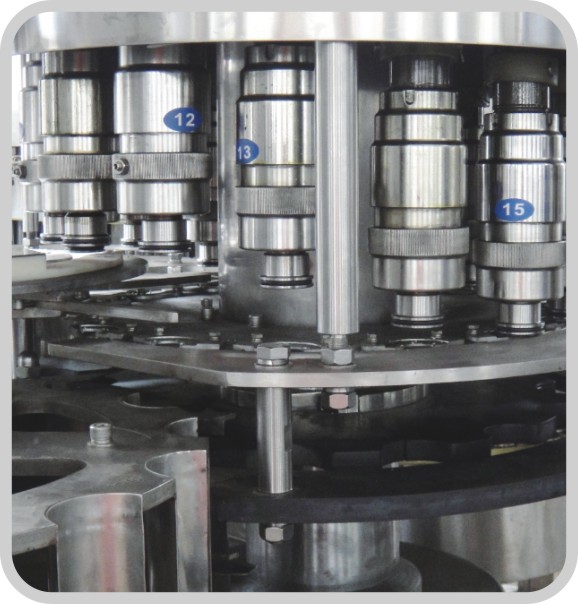

7. Magnetic torque is used for screw capping, which gives a free adjusting of cap screwing force and results in no damage to caps.
8. Those parts need to directly contact with water and drinks are made of high quality stainless steel.
9. High safety is guaranteed by high quality electrical components like decelerator, the motor from Mitsubishi and Omron.
Parameters of Hot Drink Filling Machines
1. Hot Drink Filling Machine 3000-7000BPH
| Model | JND 14-12-5R | JND 16-12-6R | JND 18-18-6R |
| Production Capacity (BPH) | 3000-4000 | 4000-5000 | 5000-7000 |
| Way of Filling | Gravity Micro Negative Pressure Filling | ||
| Filling Feedback Quantity | ≤8％ | ||
| Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm, 150-320mm, Volume330-1500ml | ||
| Gas Source Pressure (Mpa) | 0.6 | ||
| Gas Consumption (m3/min) | 0.2 | 0.2 | 0.4 |
| Total Power (kW) | 4.6 | 4.6 | 5.4 |
| Total Weight (kg) | 2500 | 3200 | 3800 |
| Dimension (L×W×H)(mm) | 2350×1700×2150 | 2600×1830×2030 | 2830×2030×2030 |
2. Hot Drink Filling Equipment 8000-18000BPH
| Model | JND24-24-8R | JND 32-32-10R | JND 40-40-12R |
| Production Capacity (BPH) | 8,000-12,000 | 12,000-15,000 | 16,000-18,000 |
| Way of Filling | Gravity Micro Negative Pressure Filling | ||
| Filling Feedback Quantity | ≤8％ | ||
| Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm, 150-320mm, Volume330-1500ml | ||
| Gas Source Pressure (Mpa) | 0.6 | ||
| Gas Consumption (m3/min) | 0.4 | 0.5 | 0.55 |
| Total Power (kW) | 6.4 | 8.07 | 9.58 |
| Total Weight (kg) | 5200 | 6500 | 8000 |
| Dimension (L×W×H)(mm) | 3220×2300×2600 | 3450×2510×2710 | 3800×2800×2710 |
3. Hot Drink Filling Machinery 8,000-18,000BPH
| Model | JND 50-50-12R | JND 60-60-15R | JND 80-80-20R |
| Production Capacity (BPH) | 20,000-24,000 | 24,000-28,000 | 36,000-40,000 |
| Way of Filling | Gravity Micro Negative Pressure Filling | ||
| Filling Feedback Quantity | ≤8％ | ||
| Applicable Bottle Type | Bottle DiameterΦ50-Φ100mm, 150-320mm; Volume330-1500ml | ||
| Gas Source Pressure (Mpa) | 0.6 | ||
| Gas Consumption (m3/min) | 0.6 | 0.7 | 0.7 |
| Total Power (kW) | 11.8 | 15 | 19 |
| Total Weight (kg) | 11000 | 12800 | 16000 |
| Dimension (L×W×H)(mm) | 4510×3400×2900 | 6500×5400×3500 | 7650×6400×2700 |
