Applications

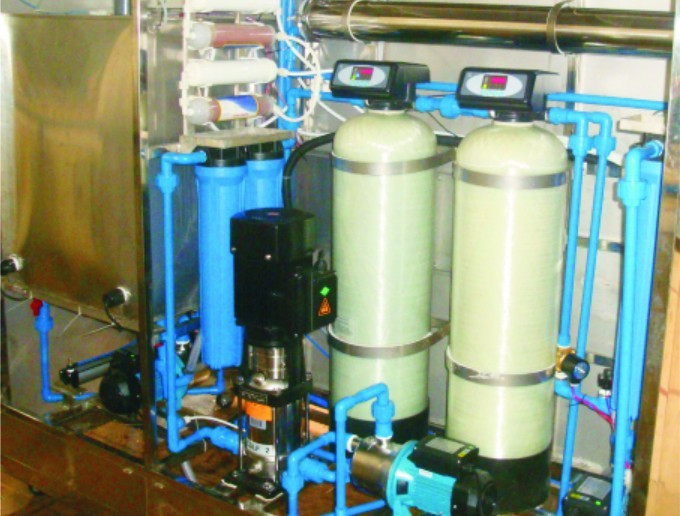

1.Bottle filling line adopts American advanced RO antipenetration filter purification technology, sevenfold water quality treatment, effectively remove original harmful substances, such as sand, alga, chlorine, heavy metal, organic composition and germ.
2. 24-hour uninterrupted ultraviolet sterilization, ensuring water quality sanitation.
3. Applied high concentration ozone for water bottle sterilization, preventing second pollution of water.
4. Precise water quality TDS monitor technology, getting water quality condition instantly
5. Automatic photosensitivity sensor control & Lamp inspection function, saving power and water.
6. Coin and intelligent IC card charging technology, both of which can be applied according to client’s demand.
7. Luxury appearance, 100% waterproof design, imported outdoor plastics coated on the surface.

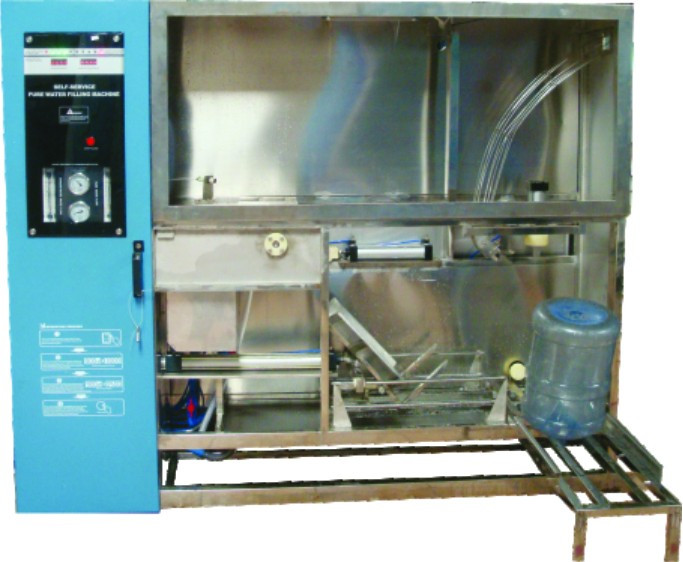

8. Full automatically wash the bottle with high concentration ozonized water, and smoothly finish the process of bottle washing filling and capping .

Technical Standards of Water Treatment & 5 Gallon Bottle Filling Machine

Model	1300GPD	1900GPD	3000GPD
Voltage / Frequency	Ac~220V 60Hz
Input Power	1800W	2530W	3630W
Rated Current	8.2A	11.5A	16.5A
UV Lamp Power Input	16W
Ozone concentrations	10g, 0.2mg/L
Raw Water	Municipal Tap water
Pure water Production capacity	200L/H	300L/H	472L/H
Desalting rate	0.99
Recovery	45~50%
Filling flow rate	12L/min
Filling capacity	30 bottles/H (5 gallon bottle)
Size of Filling Bottle	5 gallon bottle or smaller
Compressed air used	0.4~0.6MPa
Dimension	W1950×D1014×H1690(mm)
Weight	350KG
RO membrane	4040
Purification Stage ( 7 Stages)	Sand Filter + GAC Filter + PP + PP + RO + Post carbon + Mineralization filter+ UV + Ozone
Installation Place	community, school, factory, etc.
