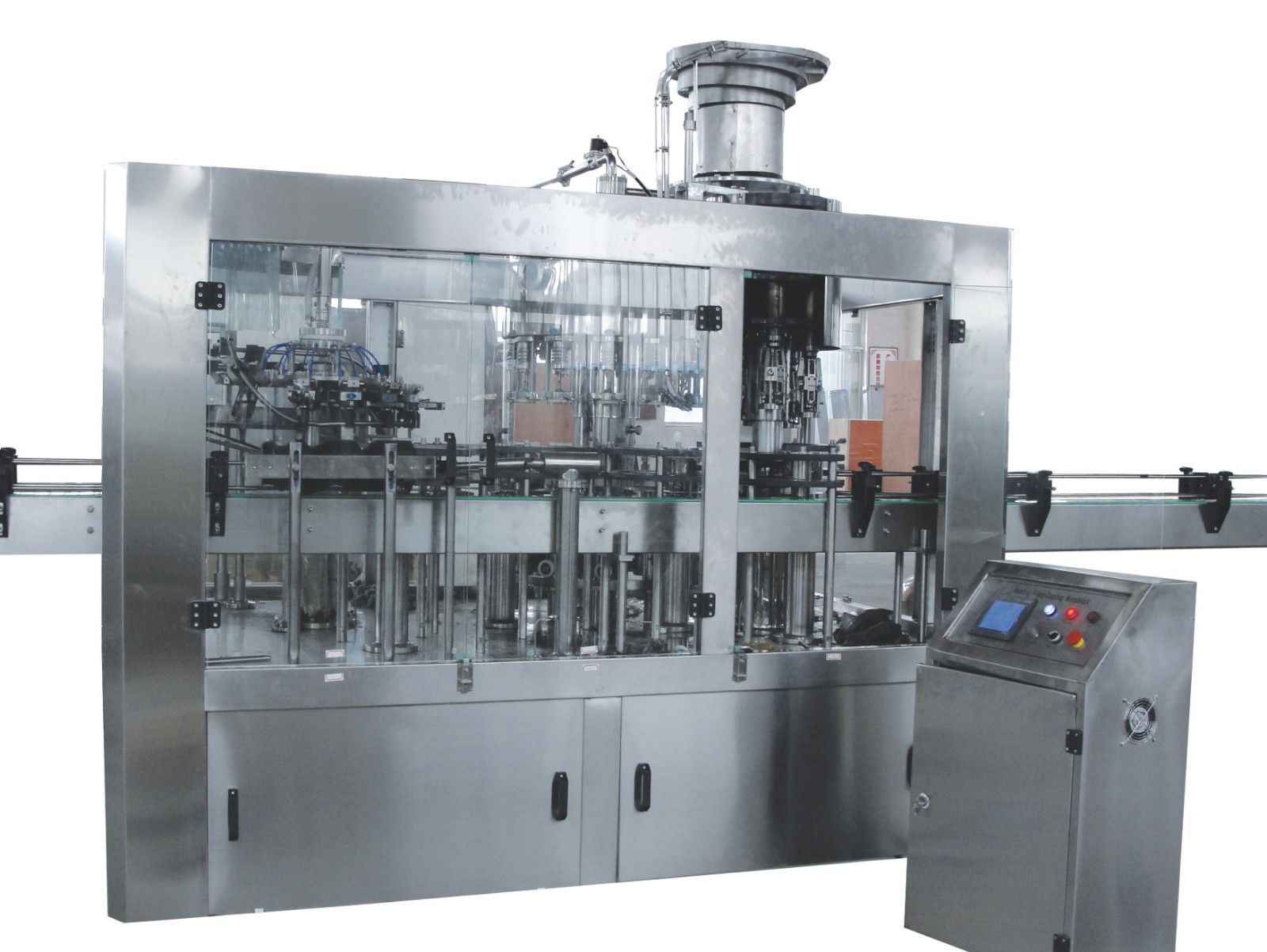

Description
The glass bottle washing-filling capping machine is mainly used for wine or sauce filling operation combining rinsing, filling and capping, the whole procedure is full automated, suitable for glass bottle with aluminum steal-proof caps to fill with vodka, wine, sauce and many other products. The bottle type can be freely adjusted depending on each case, and it has more capacity and benefits compared with other machines with the same specification.

Advantages
The glass bottle washer filler capper equipment has an advanced programmable PLC, its bottle input conveyor has adjustable speed and its bottle output conveyor has adjustable speed motor. In cooperation with its main mechanism’s transducer makes the bottle running smoothly and reliably, it is convenient to operate with high accuracy due to every part runs by photoelectric detector ideal for beverage maker industry.

Parameters of the Glass Bottle Washing Filling Capping Machine

Model	JND 16-12-6G	JND 18-18-6G	JND 24-24-8G		JND 32-32-10G
Production Capacity(BPH)(500ml)	3000	5000	8000		10000
Applicable Bottle Type	(Bottle Diameter)Φ50-Φ100mm() 150-320mm(Volume) 250-2000ml
Total Power (kW)	2.2	3		4	5.5
Total Weight(Kg)	3000	3800		5200	6500
Dimension(L×W×H)(mm)	2450×1830×2030	2830×2030×2030		3220×2300×2600	3450×2510×2710
