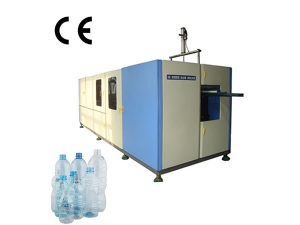

Auto High Speed Stretch Blow Molding Machine,Stretch Blow Mold Machine

Description
JND series of auto high speed stretch blow molding machine is widely used to produce varieties of PET plastic container and package for mineral water, beverage, oil, cosmetic and hot infusion, etc. Controlled by micro-computer with each main process fitted with safety of self-locking, it only needs one worker to operate and the total production is completed automatically. Its wide utilization and reliable performance make it become popular and attractive to all bottle manufacturers.
The biggest advantage of the blow molding machine is energy saving. Adopting high pressure clamping, JND automatic stretch blow mold machine makes self-adjustment in accordance with the different pressure needed during production, thus ensuring the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing, and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, lower costs and improved efficiency are achieved.

Parameters of Auto High Speed Stretch Blow Molding Machine

General Information	JND-H4		JND-H6
Clamping Force	50T		75T
Clamping Stroke	120mm		120mm
Max. Stretching Stroke	370mm		370mm
Bottom Moving Stroke	60mm		60mm
Number of Cavities	4 Cavity		6 Cavity
Theoretical Output	7200BPH		9000BPH
Max. Mold Thickness	300mm		300mm
Space Between Tie Bars	510×490mm		740×540mm
Electrical System of Stretch Blow Mold Machine
Voltage Standard	380v/3PH/50Hz or special order		380v/3PH/50Hz or special order
Number of Heating Zone	4 Sections		8 Sections
Total Power (Full Loaded)	96kW		128kW
Container
Max. Container Volume	2L		2L
Neck Diameter Range	26/30mm		26/30mm
Max. Container Diameter	100mm		100mm
Max. Container	360mm		360mm
Air system of Auto High Speed Stretch Blow Molding Machine
Low Air compressor	8-10Bar		8-10Bar
High Air compressor	30-40Bar		30-40Bar
Dimension & Weight
Blow molding machine		4.65×1.882.7m	5.36×1.95×2.7m
Preform Auto loader		1.02×2.45×2.7m	1.02×2.45×2.7m
Net Weight		4T	7T
