Application

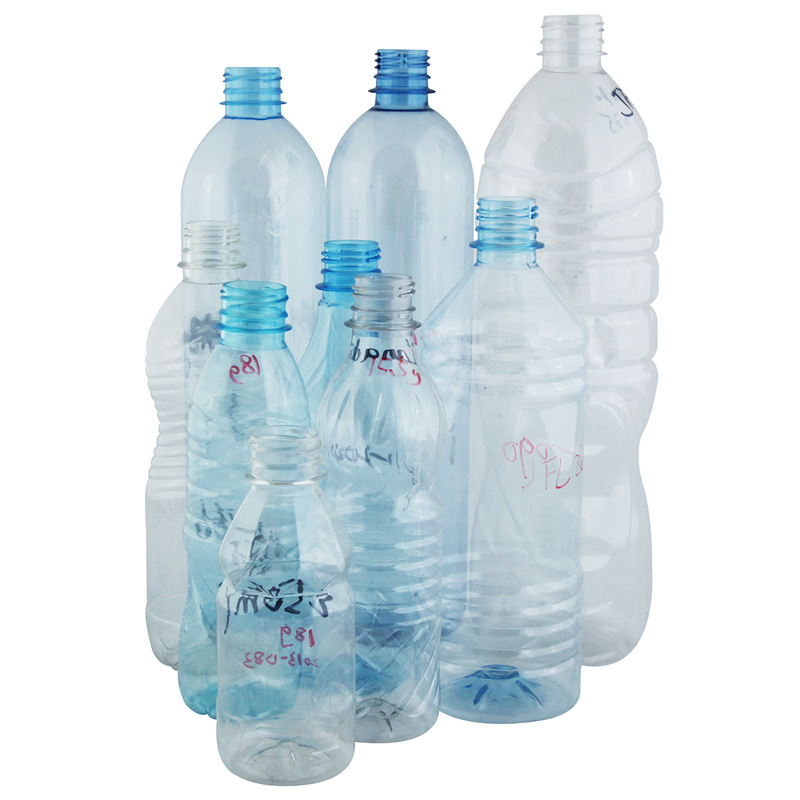

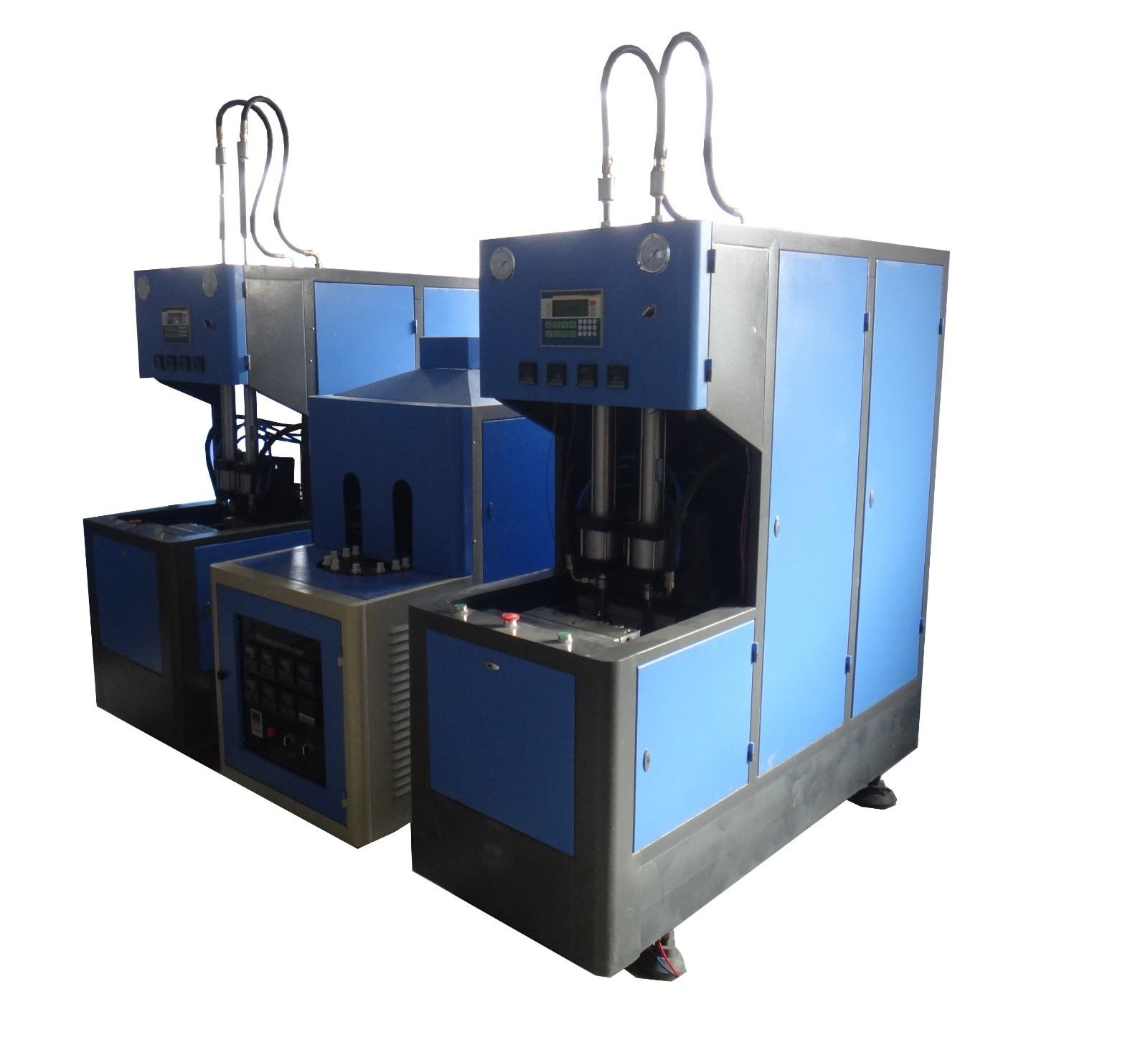

JND Semi-auto reheat stretch blow molding machine is suitable for manufacturing carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.

Feature
1. The reheat stretch blow molding machine is designed according to CE standard.
2. Accurate and stable parameter control for the adoption of microcomputer controlling system.
3. Simple and safety operation and only one operator is needed.

Technical Standards of Semi-auto Reheat Stretch Blow Molding Machine

General Information	JND-880
Clamping Force	20T
Clamping Stroke	230mm
Max. Stretching Stroke	380mm
Number of Cavities	2 Cavity
Theoretical Output	0.1-2.5L: 880BPH, 3-6L: 380BPH

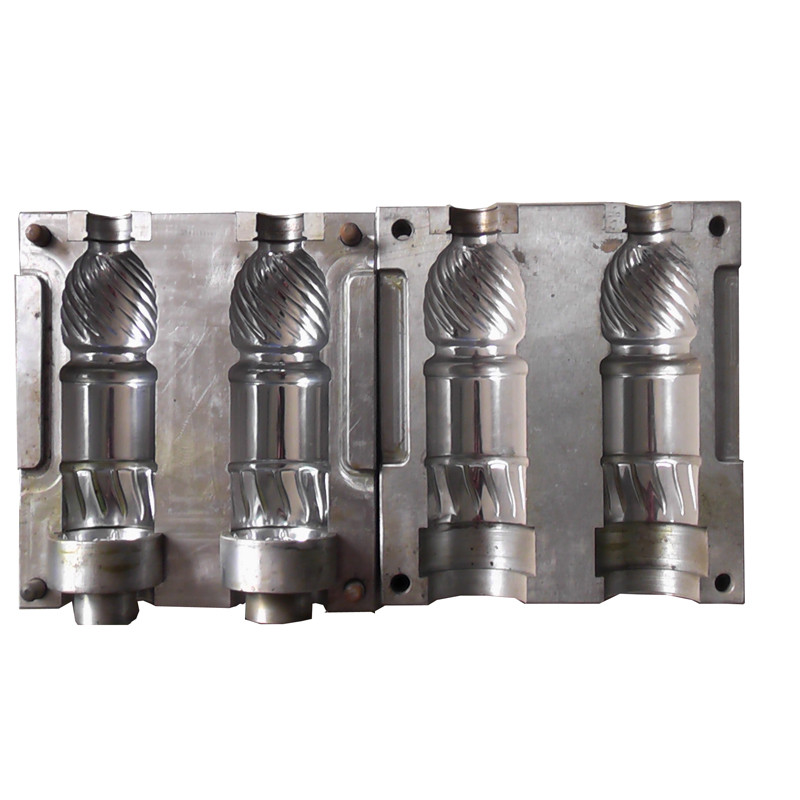

Max. Mould Thickness	300mm
Space Between Tie Bars	280×500mm
Electrical System
Voltage Standard	AC 380V/50HZ
Number of Heating Zone	2 Sections
Total Power (Full Loaded)	6kW
Container
Max. Container Volume	0.1-2.5L(2cav), 3-6L(1 cav)
Neck Diameter Range	15-60mm
Max. Container Diameter	35-220mm
Max. Container	450mm
Auxiliary System

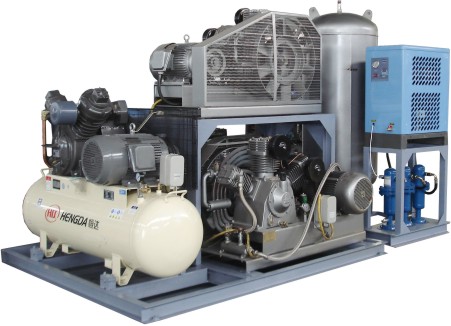

Low Air compressor	8-10Bar
High Air compressor	30Bar
Air Dryer	2.0/30
Dimension & Weight (L×W×H)
Blow molding machine	1480×600×2130mm
Preform Auto loader	1370×610×1340mm
Net Weight	0.82Ton
