Description

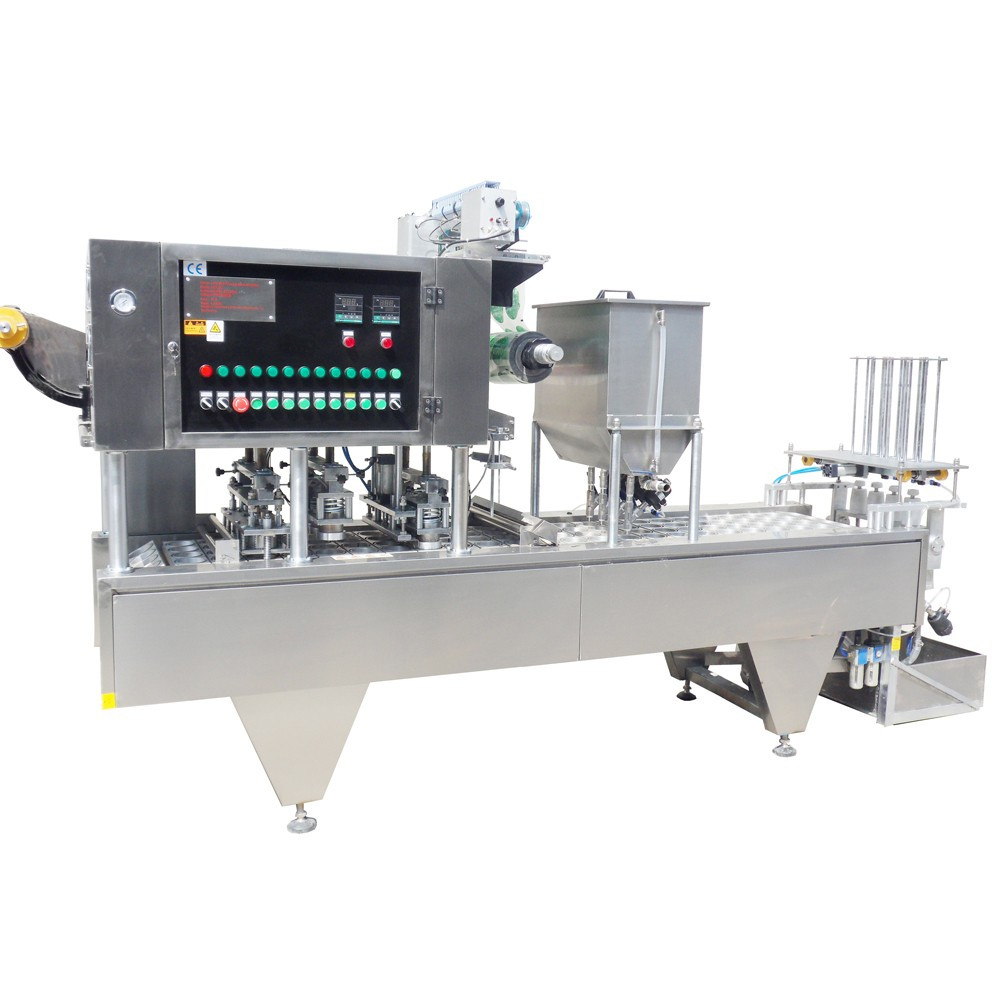

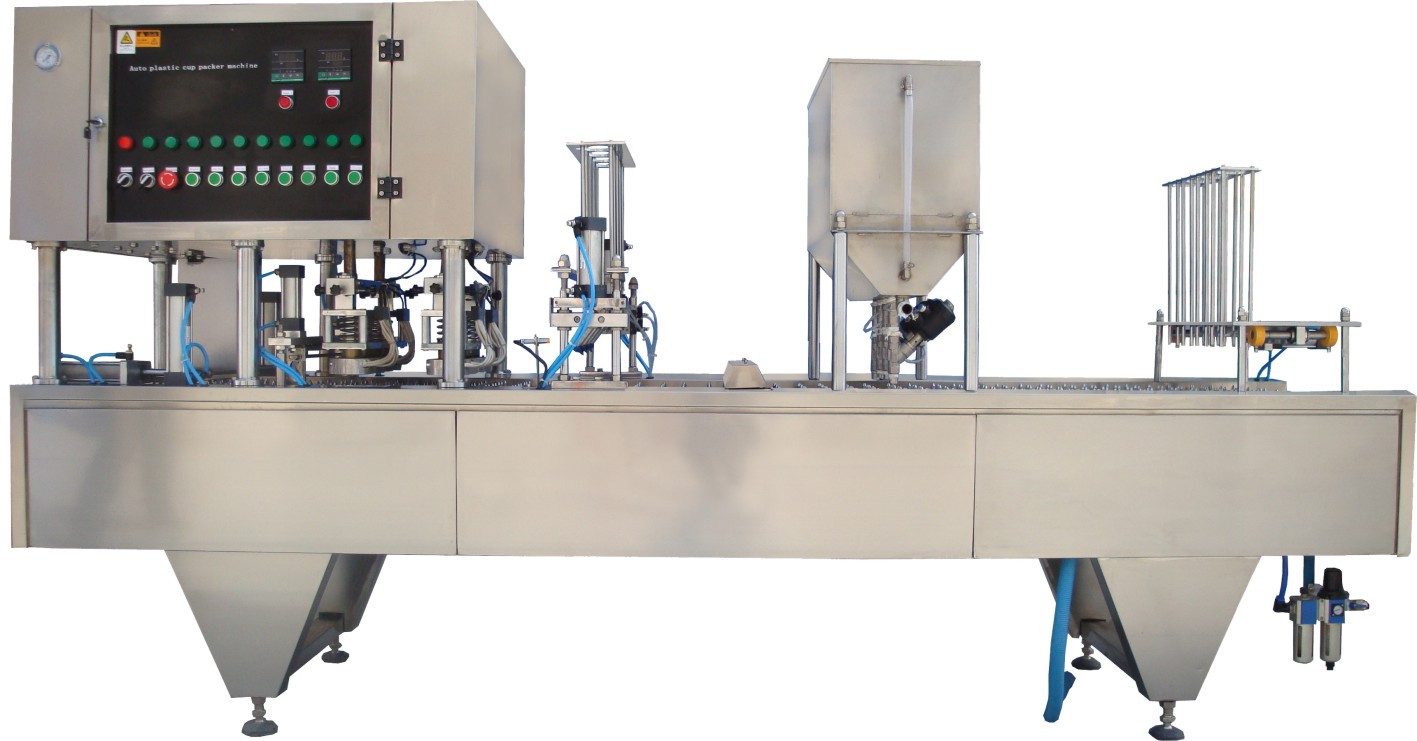

The plastic cup filling machine is suitable to fill and seal plastic cups or bowls. These containers can be filled with liquids or cream, jelly, milk ice-cream, coconut meat, fruit jam and others. A position guiding device is used for film-cutting; as a result, edges are fine-looking. The plastic cup filling machine has automatic process for cup-feeding, filling, sealing, cutting and printing, it's equipped with sensors to ensure the right filling and sealing.

The plastic cup filling line is made of stainless steel and it has several models able to satisfy different kinds of containers, even under special clients' requirements. It's equipped with a date-code printer as well.

Features of the Plastic Cup Filling Line
1. Drive and traction system
2. Cup loading system
3. Ration filling system
4. Icon orientation
5. Hot sealing and cutting system

Technical Parameters of the Plastic Cup Filling Machine

Model	JND-2C	JND-4C	JND-6C	JND-8C	JND-10C	JND-16C
Power supply	3380V/50Hz	3380V/50Hz	3380V/50Hz	3380V/50Hz	3380V/50Hz	3380V/50Hz
Power (kW/H)	2	3.2	5	6.5	8.2	12
Productive ability (Cups/H)	1500- 2100	3000- 4100	4500- 6000	6500- 7500	7000- 10000	14000- 16000
Air pressure (Mpa)	00.65-0.85	00.65-0.85	00.65-0.85	00.65-0.85	00.65-0.85	00.65-0.85
Air consumption (M3/Min)	0.6	0.7	0.8	0.8	0.9	1
Total weight (Kg)	700	800	900	1000	1100	1400
Dimension (L×W×H)(mm)	3000×600×1500	3200×780×1500	3200×950×1500	3500×780×1500	3500×950×1500	4200×1200×1500
