Functions
1. High safety operation: automatic break protection for power leakage and short circuit.
2. Under-pressure protection: when the pressure of incoming air is ≦0.5MPa, the filling equipment will automatically stop.
3. Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the 5 gallon filling machine will stop working automatically.

Remarks

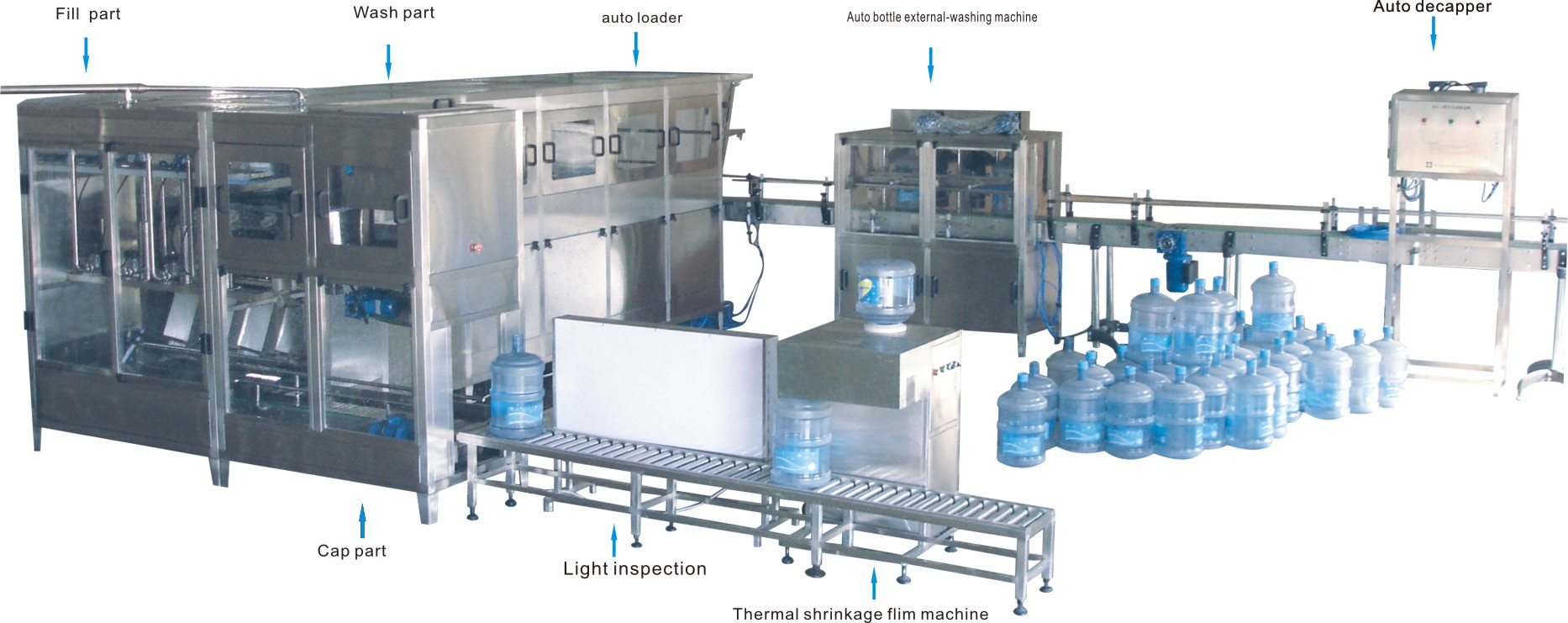

More functions for our 5 gallon filling machines like hot tank heating washing, bottle external washing, bottle cap washing and human-computer interface control etc. It could be provided upon request. Our 5 gallon filling machine integrated bottle washing, filling and capping together.

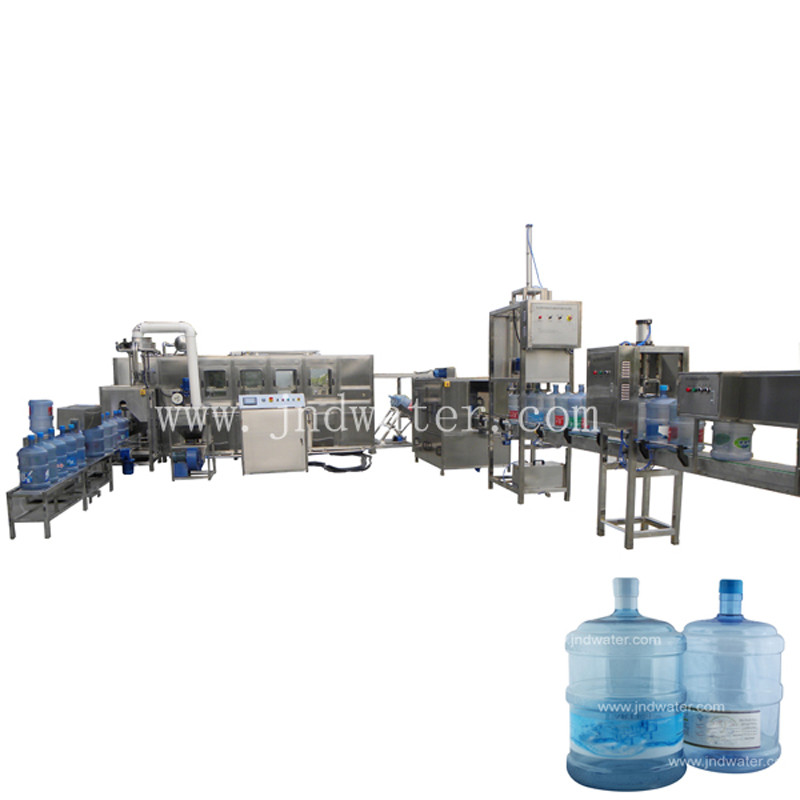

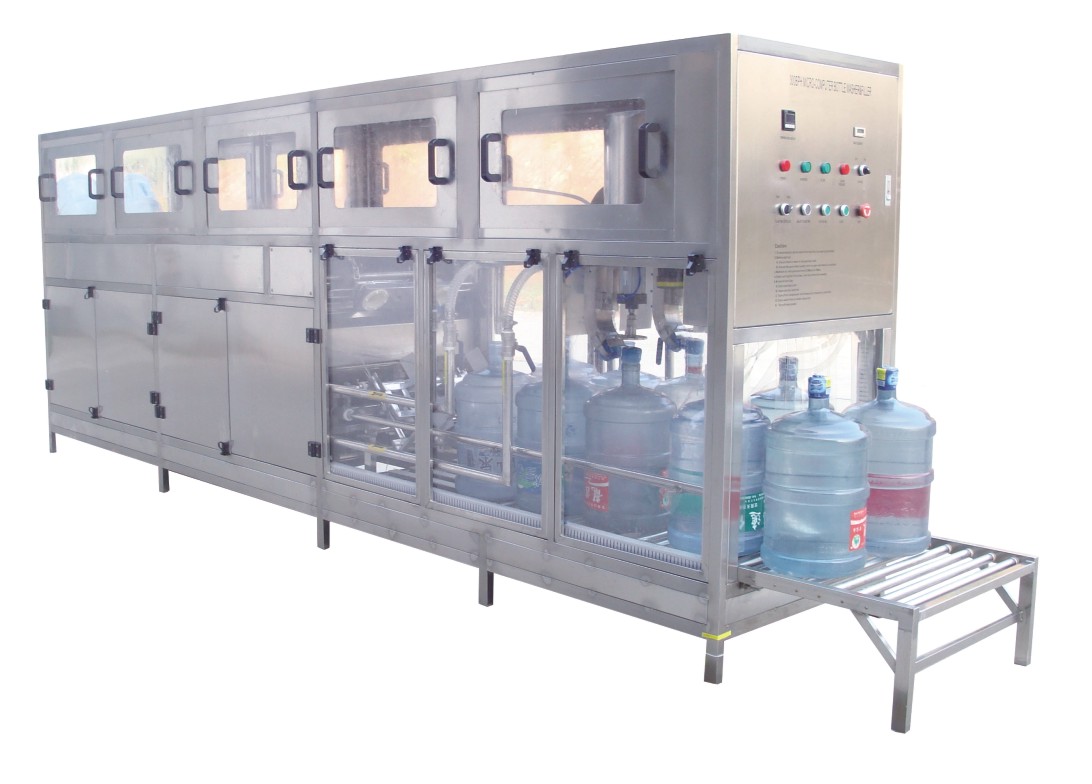

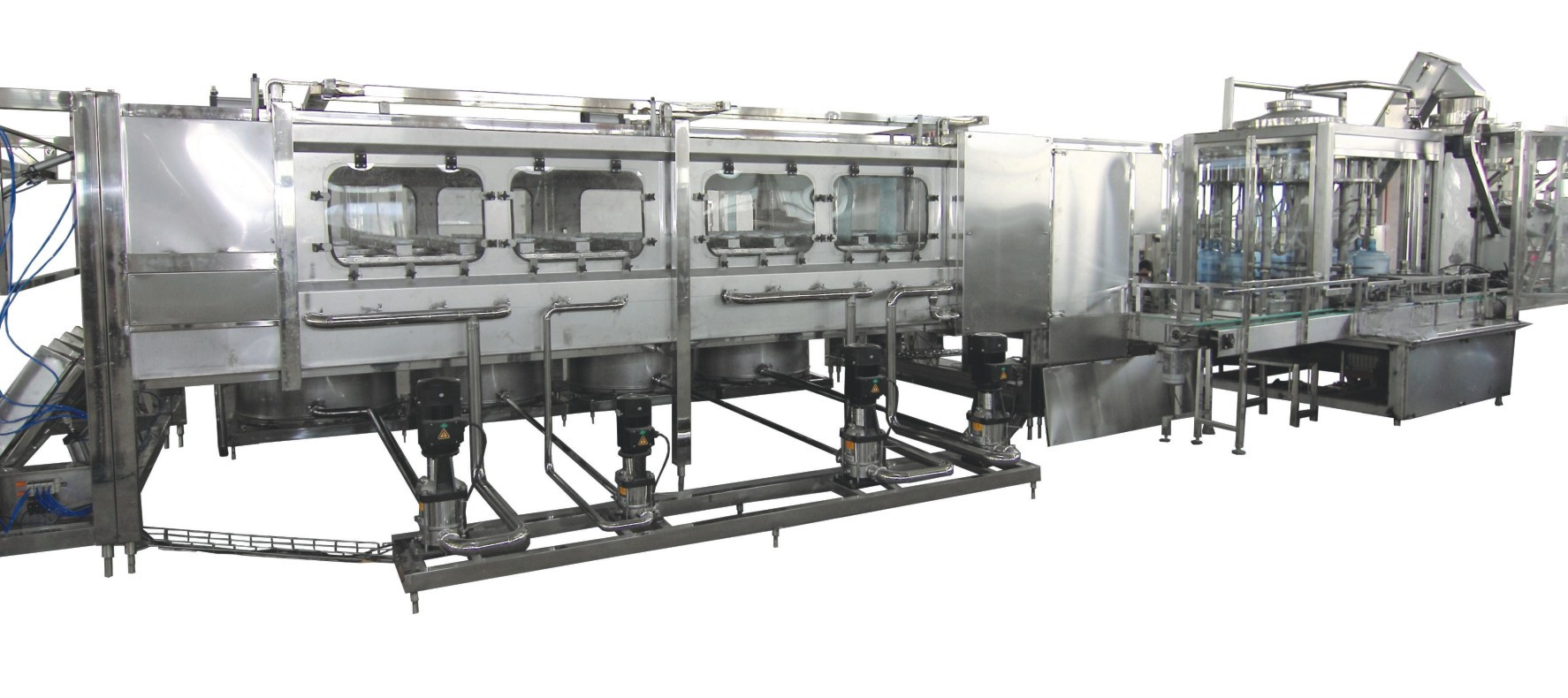

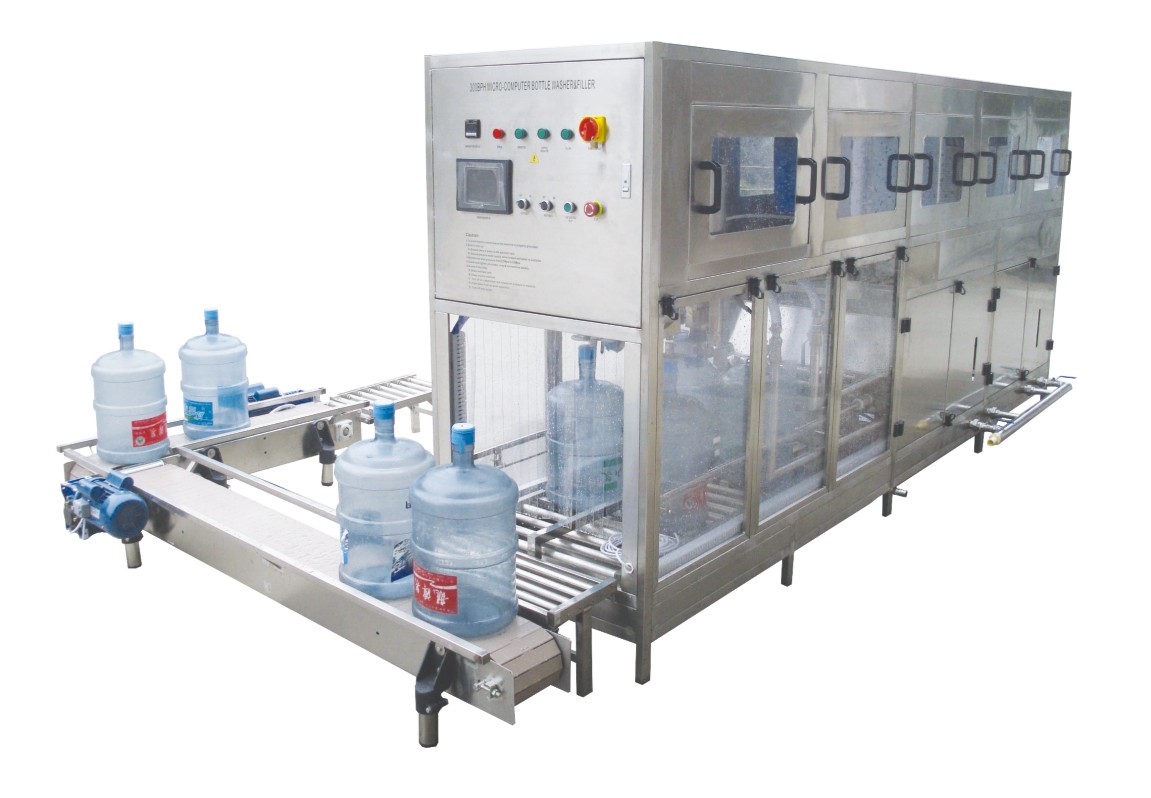

Technical Parameters of 5 Gallon Bottle Washing Filling Capping Machine
1. Micro-computer Bottle Washer/Bottler Filler/Bottle Capper 60BPH

Model	JND100	JND100	JND100	JND100
Output	60BPH	60BPH	100BPH	120BPH
Voltage	AC220V/380V±5% 50HZ/60HZ
Rated Power	0.8kW	1．6kW	4.2kW	4.95kW
Washing heads	1×2	1×3	1×4	1×5
Filling heads	1×1	1×1	1×1	1×1
Capping heads	1×1	1×1	1×1	1×1
Bottle size	Ф270×490×Ф56 mm
Cap size	Ф58×40(Tail: L×W=18×7.5) mm
Air pressure	0.5~0.6MPa
N.W.	195Kg	195Kg	300Kg	300Kg
Overall Dimension(MM)	2340×500×1600	2710×500×1600	2950×500×1600	3245×500×1600

2. Micro-computer Bottle Washer/Bottler Filler/Bottle Capper 200-300BPH

Model	JND100	JND100	JND100
Output	200BPH	250BPH	300BPH
Voltage	AC220V/380V±5% 50HZ/60HZ
Rated Power	6.3kW	7.16kW	8.65kW
Washing heads	2×4	2×5	2×6
Filling heads	2×1	2×1	2×2
Capping heads	2×1	2×1	2×1
Bottle size	Ф270×490×Ф56 mm
Cap size	Ф58×40(Tail: L×W=18×7.5) mm
Air pressure	0.5~0.6MPa	0.5~0.6MPa	0.5~0.6MPa
N.W.	395Kg	395Kg	445Kg
Overall Dimension(MM)	2950×800×1600	3245×800×1600	3820×800×1600

3. Micro-computer Bottle Washer/Bottler Filler/Bottle Capper 450-600BPH

Model	JND100	JND100
Output	450BPH	600BPH
Voltage	AC220V/380V±5% 50HZ/60HZ
Rated Power	19.1kW	24.8kW
Washing heads	3×7	4×9
Filling heads	3×1	4×1
Capping heads	1×3	1×1
Bottle size	Ф270×490×Ф56 mm
Cap size	Ф58×40(Tail: L×W=18×7.5) mm
Air pressure	0.5~0.6MPa	0.5~0.6MPa
N.W.	950Kg	1450Kg
Overall Dimension(MM)	4390×1100×1760	4710×1520×1760
	3000×800×1760	3220×800×1760

4. Micro-computer Bottle Washer/Bottler Filler/Bottle Capper 900-1200BPH

Model	JND100	JND100
Output	900BPH	1200BPH
Voltage	AC220V/380V±5% 50HZ/60HZ
Rated Power	36kW	46kW
Washing heads	6×10	6×13
Filling heads	6×1	8×1
Capping heads	1×1	1×1
Bottle size	Ф270×490×Ф56 mm
Cap size	Ф58×40 (Tail: L×W=18×7.5) mm
Air pressure	0.5-0.6MPa	0.5-0.6MPa
N.W.	2000Kg	2600Kg
Overall Dimension(MM)	5100×1850×1760	6200×2060×2300
	3880×800×1760	2000×1900×2500
