Description
Setting up this carbon dioxide laser coding machine is pretty easy, taking less time than is needed for any laser marker in the market. The laser source is a 10W CO2 laser tube, providing unlimited marking possibilities. The laser tube delivers quality laser beam which suits itself for marking on literally any materials including paper, cardboard, plastics and more.

Advantages of Laser Marking Machine
1. Compact Design, Versatile
2. All-in-one laser marking solution
3. Single-box design enables fast installation and changeover
4. Fits easily on most production lines
5. Excellent marking results, wide uses
6. Permits easy handling by only one operator
7. Quick start and simple operation
8. Averages 30 minutes for mechanical setup and 20 minutes for changeover to enable quick startup.

Marking Fields (see graphic for marking field sizes)

Three Focusing Lenses
Working Distance/mm	80	128	179
Focal Length/mm	100	150	200

Marking Formats

Standard fonts: Simplified Chinese, Western/Eastern European

Optional fonts: Bengali, Vietnamese, Thai, Japanese, Arabic, Hebrew

Machine-readable codes: ID matrix, bar codes Logos/symbols (pixel-based, vector-based)

Graphical elements: ellipse, rectangle, polyline)

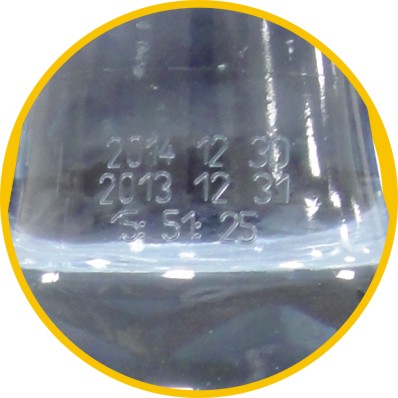

Variables: serial numbers, text, date, time, shift code

Line Speed (application dependent): Up to 3.26 feet/sec. (1 m/s)

Laser Marking Machine Components

Standard Configuration

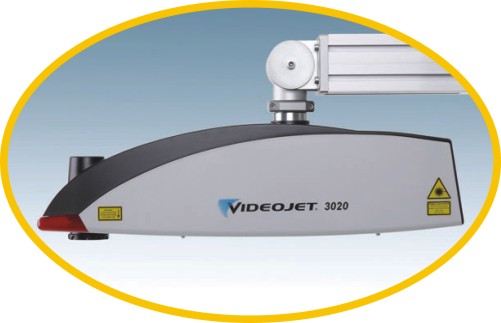

Laser marking unit: (includes laser, digital high-speed galvanometer scanners, one lens with lens protection, controller, I/O panel, built-in keypad, power supply, connectors, lamps, switches, focus finder to adjust working distance); laser beam orientation:90-degree beam exit; product detector; touch-screen tablet

Options & Accessories
Mobile stand; beam shield, exhaust unit, encoder, fiber optic photocell, touch brackets, mounting brackets

Laser Tube
Single sealed CO2 laser, power class 10-Watt

Central emission wavelength: 10.6 µm Integration

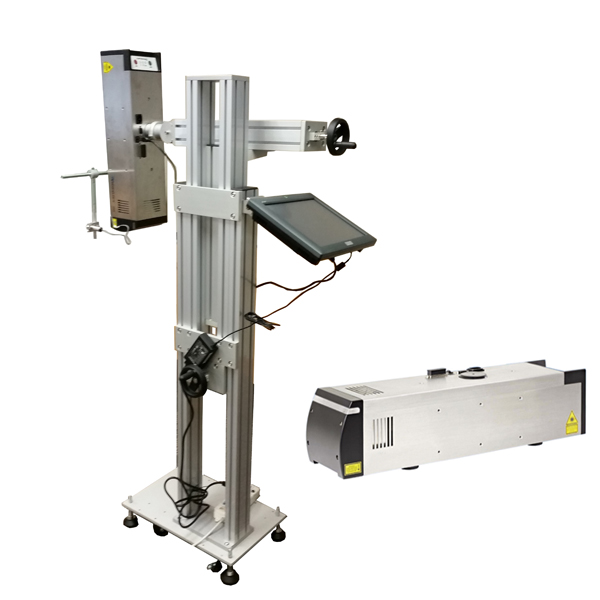

Stand-alone solution when optional stand is utilized

Usage without stand: direct integration into production lines via mounting brackets

User Interfaces

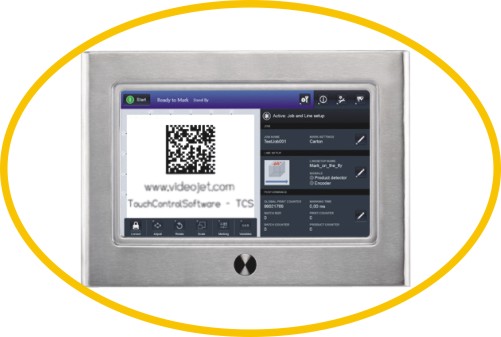

Touch-screen Tablet PC based.
Communicates with the marking unit via ethernet USB interface on touch-screen for data exchange.
IP20 Configurable in English (US, UK), Chinese

Built-in keypad
Start and stop keys, LED indicators for status, laser emission, error

Software

Touch Control Software
Touch-screen user interface runs Windows® for preparation of marking jobs, line setup, print parameter setup and system configuration
Creation and editing of jobs; includes vertical/horizontal adjustment, rotation and scaling of marking contents and intensity variations
WYSIWYG Various password-protected security levels

Communication
Inputs for encoder and product detector
Digital I/Os for start, stop, interlock, shutterlock, ready, error, shutter closed

Power supply
100 to 120 V/200 to 240 V (autorange); 350 VA, 1 PH, 50/60 Hz

Environmental Protection
Dust protected; internally air-cooled

Ambient temperature: 5° to 40° C (41° to 104° F); up to 45° C (113°F) with reduced duty cycle

Humidity range: 10 - 90%, non-condensing

Approximate Weight
Marking unit: 12.5 kg

Applicable Certifications
CSA, ROHS, CE
